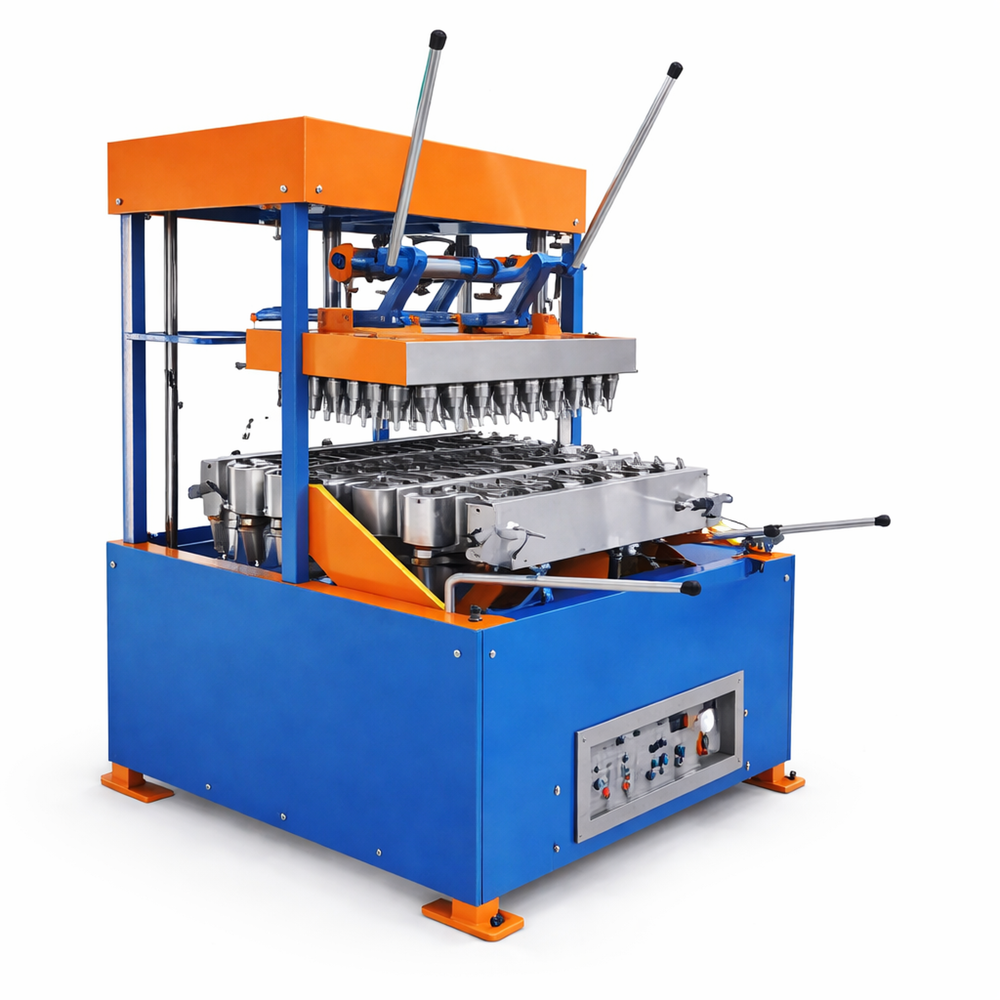

EDIBLE TEA CUP MAKING MACHINE [KC-ECMM-12]

EDIBLE TEA CUP MAKING MACHINE [KC-ECMM-12]

390000.0 INR/Unit

Get a Price/Quote

Product Details:

Grade Semi-Automatic
Type Other
Material Food Grade Paper
Capacity 300-350 Pcs/hr
Computerized No
Control System Human Machine Interface
Cutting Speed 2-3 MINS km/m
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

EDIBLE TEA CUP MAKING MACHINE [KC-ECMM-12] Price And Quantity

Minimum Order Quantity 1 Piece
Price 390000.0 INR/Unit

Error Alarm Automatic Fault Detection
Lubrication System Centralized Auto Lubrication
Production Process Bottom Feeding, Cup Side Sealing, Top Curling, Discharging
Sealing Method Ultrasonic / Hot Air
Operation Mode Touch Screen Interface
Cup Size Range Can produce 3oz to 12oz cups
Heating System Intelligent Dual Heating
Air Source 0.5 Mpa, 0.4 m3/min
Plate Material Stainless Steel
Raw Material Required Single & Double PE Coated Paper

EDIBLE TEA CUP MAKING MACHINE [KC-ECMM-12] Product Specifications

Power 9000 Watt (w)
Capacity 300-350 Pcs/hr
Grade Semi-Automatic
Cutting Speed 2-3 MINS km/m
Material Food Grade Paper
Color ANY
Cutting Thickness 1 Inch
Computerized No
Type Other
Voltage 220v /50 HZ Volt (v)
Cutting Size AS PER DEMAND
Control System Human Machine Interface
Dimension (L*W*H) 800x700x880 Millimeter (mm)
Weight (kg) 190 Kilograms (kg)
Warranty 1

Error Alarm Automatic Fault Detection
Lubrication System Centralized Auto Lubrication
Production Process Bottom Feeding, Cup Side Sealing, Top Curling, Discharging
Sealing Method Ultrasonic / Hot Air
Operation Mode Touch Screen Interface
Cup Size Range Can produce 3oz to 12oz cups
Heating System Intelligent Dual Heating
Air Source 0.5 Mpa, 0.4 m3/min
Plate Material Stainless Steel
Raw Material Required Single & Double PE Coated Paper

EDIBLE TEA CUP MAKING MACHINE [KC-ECMM-12] Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 20 Days
Main Domestic Market All India

Product Description

Edible Tea Cup Making Machine

Model: KC-ECM-12

The KC-ECM-12 Edible Tea Cup Machine is a compact and efficient solution designed for producing eco-friendly edible cups used for tea, coffee, and other beverages. This machine is ideal for small to medium-scale businesses looking to enter the sustainable packaging segment.

With a production capacity of 12 cups per cycle and an output of approximately 300350 cups per hour, the machine ensures consistent and reliable performance. The baking process is completed within 23 minutes, allowing smooth and continuous production.

The machine operates manually, providing better control over the baking process and product quality. It is equipped with a 9kW heating system that ensures uniform baking of cups. Its compact design makes it easy to install and operate in limited workspace environments.

The KC-ECM-12 is a practical and cost-effective choice for businesses focusing on eco-friendly and innovative food serving solutions.

Key Features

: 300350 cups/hour
12 cups per batch
Fast baking time: 23 minutes
Manual operation for better control
Compact and space-saving design
Energy-efficient 9kW heating system
Suitable for small to medium-scale production
Durable and easy-to-operate machine

Technical Specifications

Model: KC-ECM-12
Cup Quantity: 12 pcs
Production Capacity: 300350 pcs/hour
Baking Time: 23 minutes
Operation Type: Manual
Power Consumption: 9 kW
Voltage: 220V, 50Hz
Machine Size: 800 700 880 mm
Package Size: 940 760 1070 mm
Machine Weight: 180 kg
Gross Weight: 200 kg

Applications

Tea & Coffee Shops
Small Food Businesses
Startups in Eco-friendly Products
Catering Services
Bakery & Snack Units

Frequently Asked Questions (FAQ)

1. What is the production capacity of this machine?

The machine can produce approximately 300 to 350 cups per hour.

2. How many cups are produced in one cycle?

It produces 12 cups per batch.

3. What is the baking time per cycle?

Each cycle takes about 2 to 3 minutes.

4. What type of power supply is required?

The machine operates on 220V, 50Hz power supply.

5. Is the machine automatic or manual?

This is a manual machine, allowing better control over production.

6. Is this machine suitable for beginners?

Yes, it is ideal for small businesses and startups due to its compact size and easy operation.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'EDIBLE TEA CUP MAKING MACHINE' category

EDIBLE TEA CUP MAKING MACHINE [KC-ECMM-24] Price : 469998.0 INR/Unit Minimum Order Quantity : 1 Computerized : No Type : Other Material : Stainless Steel Cutting Speed : 23 MINS km/m Color : ANY Power : 12000 Watt (w) Capacity : 600800 Pcs/hr Grade : SemiAutomatic Cutting Thickness : 1 Inch Control System : Human Machine Interface Weight (kg) : 280330 kg Kilograms (kg) Dimension (L*W*H) : 1050X800X900 Millimeter (mm) Cutting Size : AS PER PARTY DEMAND Voltage : 220/380V 50HZ Volt (v) Warranty : 1

Send Inquiry

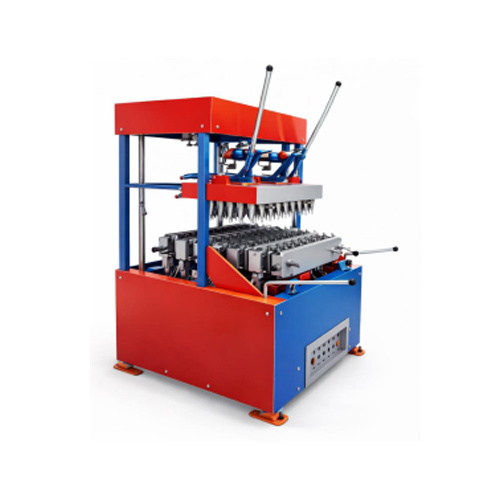

EDIBLE TEA CUP MAKING MACHINE [KC-ECMM-32] Price : 510000.0 INR/Unit Minimum Order Quantity : 1 Computerized : Yes Type : Other, Automatic Paper Cup Machine Material : Paper Cutting Speed : 4555 pcs/min Color : White & Blue Power : 4.5 kW Capacity : 4555 pcs/min Grade : Automatic Cutting Thickness : 0.3 0.5 mm Control System : Other, PLC Control System Weight (kg) : 1800 kg Dimension (L*W*H) : 2600 x 1350 x 1800 mm Cutting Size : 3 oz 12 oz Voltage : 380 V / 220 V (customized)
